Introducing our medical wastewater treatment system, designed to efficiently and effectively treat medical wastewater. With our advanced system, we utilize mechanical filters, activated carbon filters, precision filters, and pipe sterilizers to ensure a thorough treatment process. Our system is capable of removing suspended solids, turbidity, and fecal coliform bacteria, ensuring that the discharged water meets all required standards. Trust our medical wastewater treatment system to provide you with the highest level of treatment and compliance with all regulatory requirements.

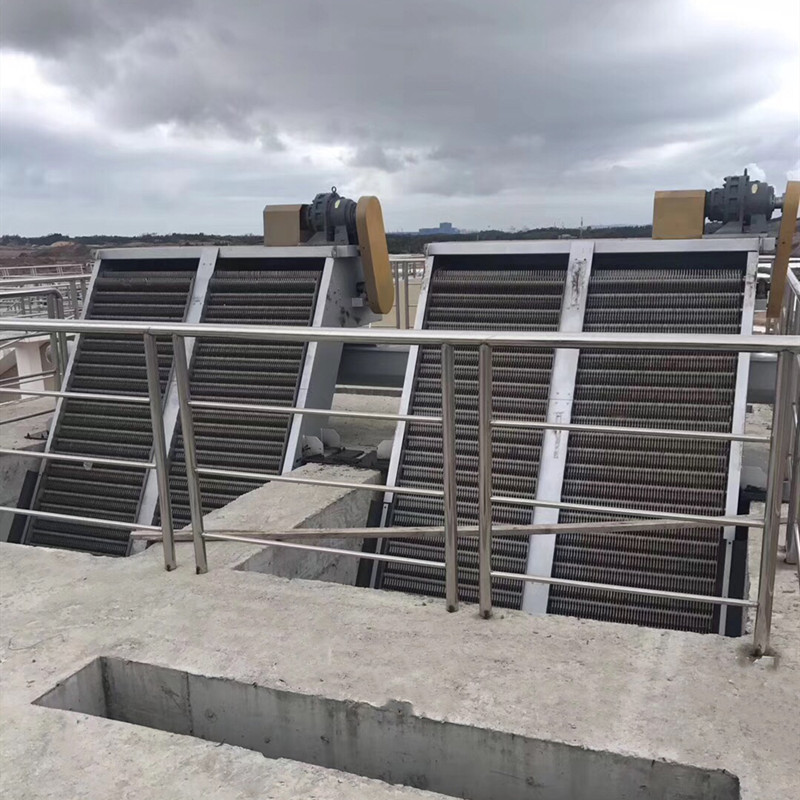

Laboratory wastewater, autoclave wastewater and laundry/surgical room wastewater are collected separately and pretreated (coagulation air floatation + UV killing), then combined with kitchen wastewater pretreated by grease trap and other wastewater pretreated by septic tank and fed into wastewater conditioning tank through rotary type for grating to intercept and remove dirt, then anoxic - aerobic biochemical treatment of wastewater, aerobic section adopts MBBR process and MBR process. It can effectively reduce and remove BOD5, CODCr and NH3-N. By returning the mixture of MBBR tank to the anoxic section, it can effectively reduce and remove TN. The deep treatment of wastewater by mechanical filter, activated carbon filter, precision filter and pipeline sterilizer can ensure that the suspended matter, turbidity and fecal coliform bacteria of discharged water can meet the discharge requirements.

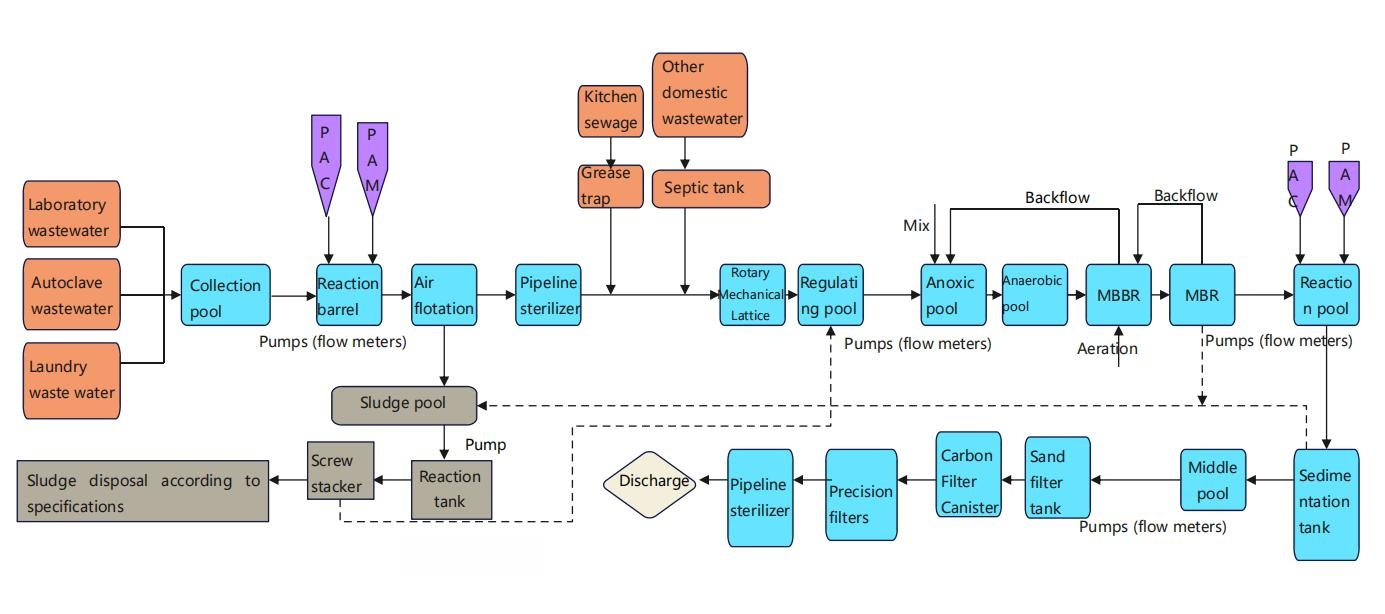

Process Flow Diagram
Details Show
Mbr Membrane
Strong water purification capacity, small footprint, and low sludge production.
Combined Filler
It can hang film and effectively cut bubbles, improving the transfer rate and utilization rate of oxygen.

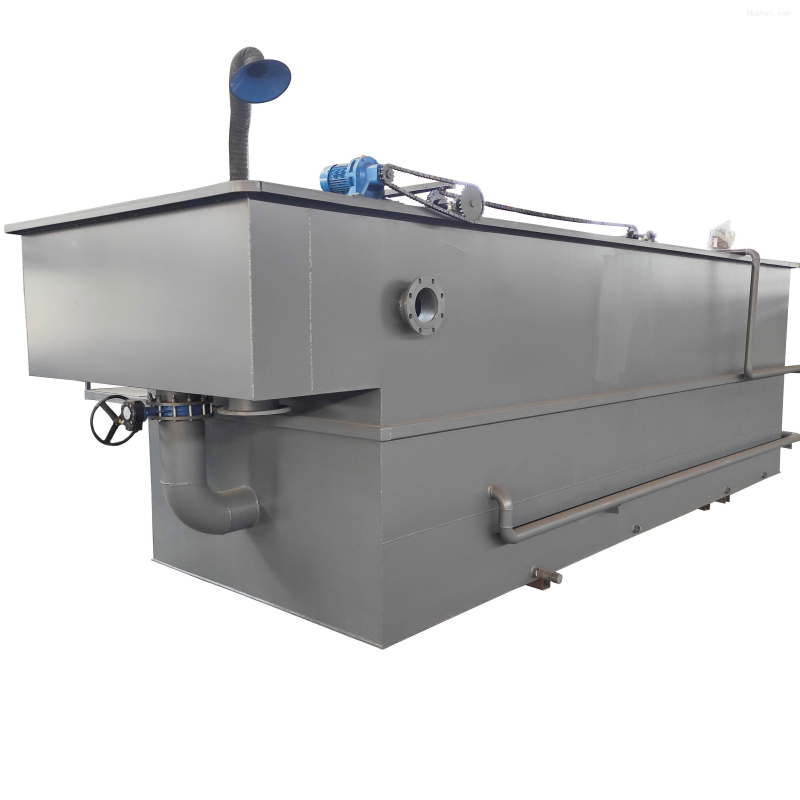

Air Flotation
Water treatment equipment for solid-liquid separation
Certifications
